Product Description

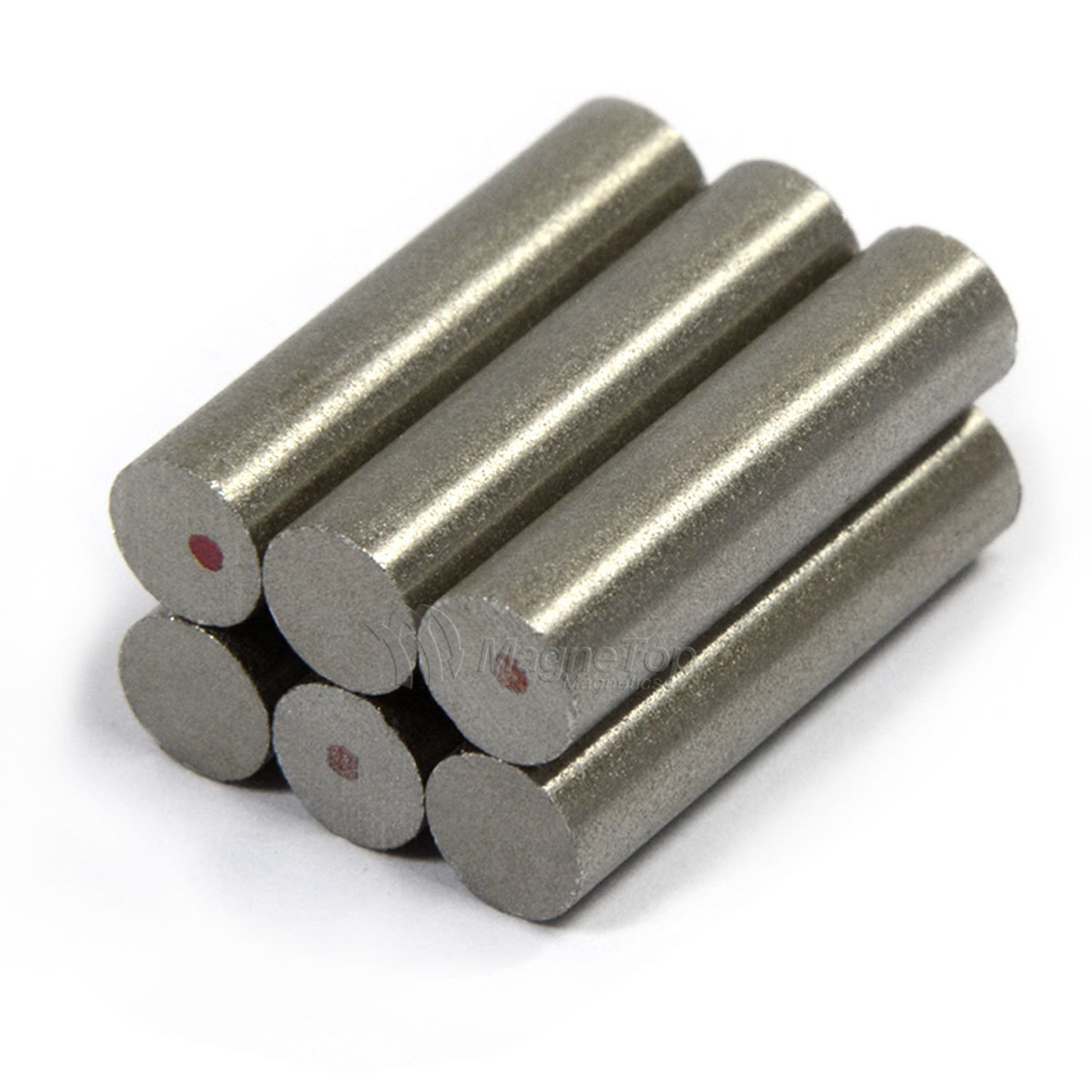

SmCo Disc-6.35mm (1/4")x 25.4mm (1").This disc SmCo magnet is made of Samarium Cobalt rare earth magnetic materials under ISO 9001 quality systems. The material is Sm2Co17 and the grade is 26. This magnet is axially magnetized so the N and S poles are on the flat surfaces.
SmCo magnets are comparable in the magnetic strength to neodymium magnets but have a higher working temperature. They are majorly used in the industries when the high temperature is present. There is no coating for this magnet.
The followings are the magnetic characteristics of this SmCo magnet,
- Br: 10.4 kGs
- Hcb: 9.8 kOe
- Hcj: 10.6 kOe
- (BH)max: 26 MGOe
- Maximum Normal Operating Temperature: 300 Celsius or 572 Fahrenheit
- Holding Force: Approximately 1.9kg
- Pole Orientations: Axially magnetized, i.e. the N and S poles are on the flat surfaces.
- Applications: Holding, motors, generators etc. For crafting magnets, please choose neodymium magnets instead.
Magnetop Magnetics provides the best quality SmCo magnets for Australian industries. All of our products are made via state of the art technology. All the magnets are made of highly purified raw material under ISO 9001 quality systems.
Should you need different grade or size of SmCo magnets, we can customize per your requirements.
Other Details
This product is covered by 2 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and vibration will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.Product Videos
Custom Field
Grade Sm2Co17-26
Pulling Force 1.9kg
Weight 6.7g
