Product Description

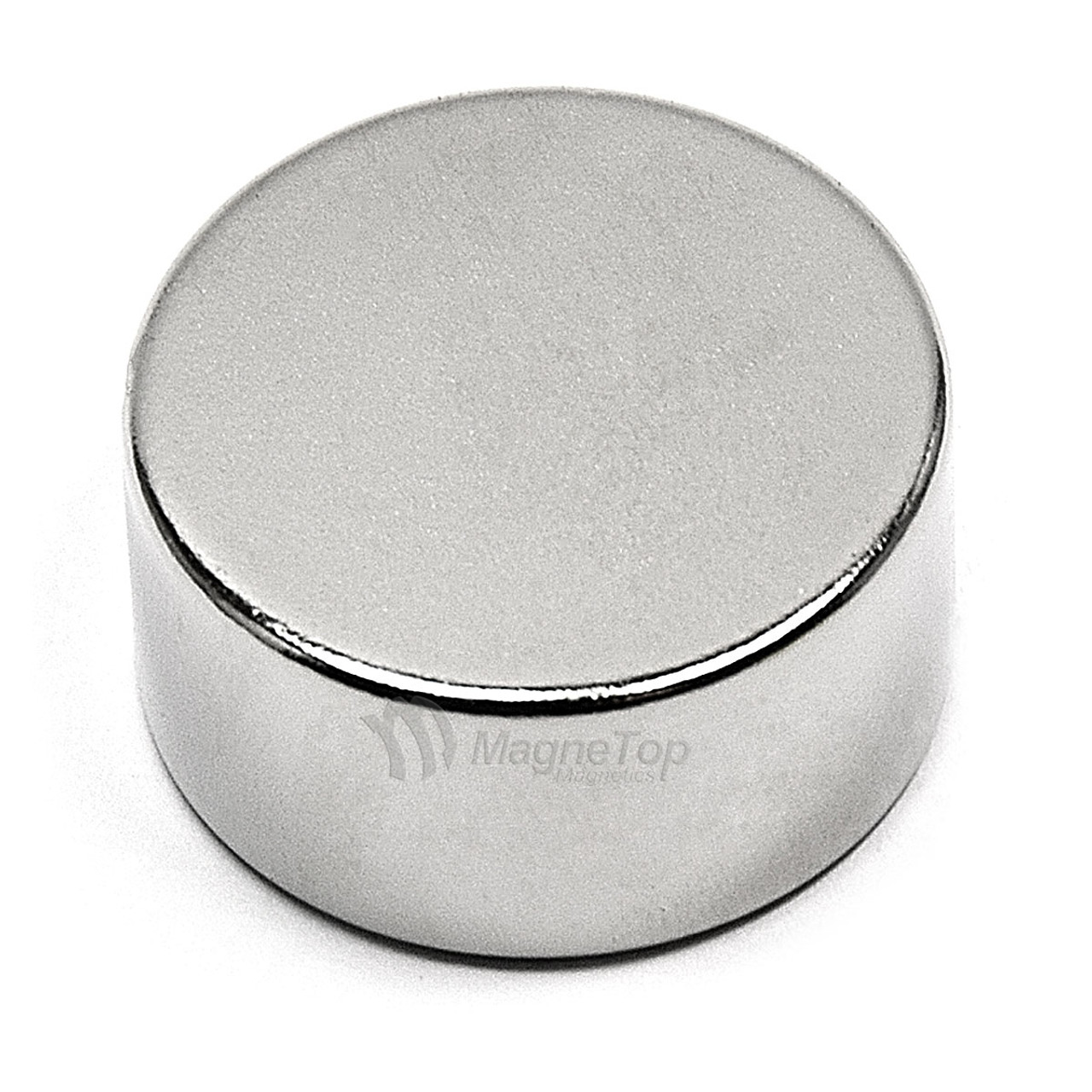

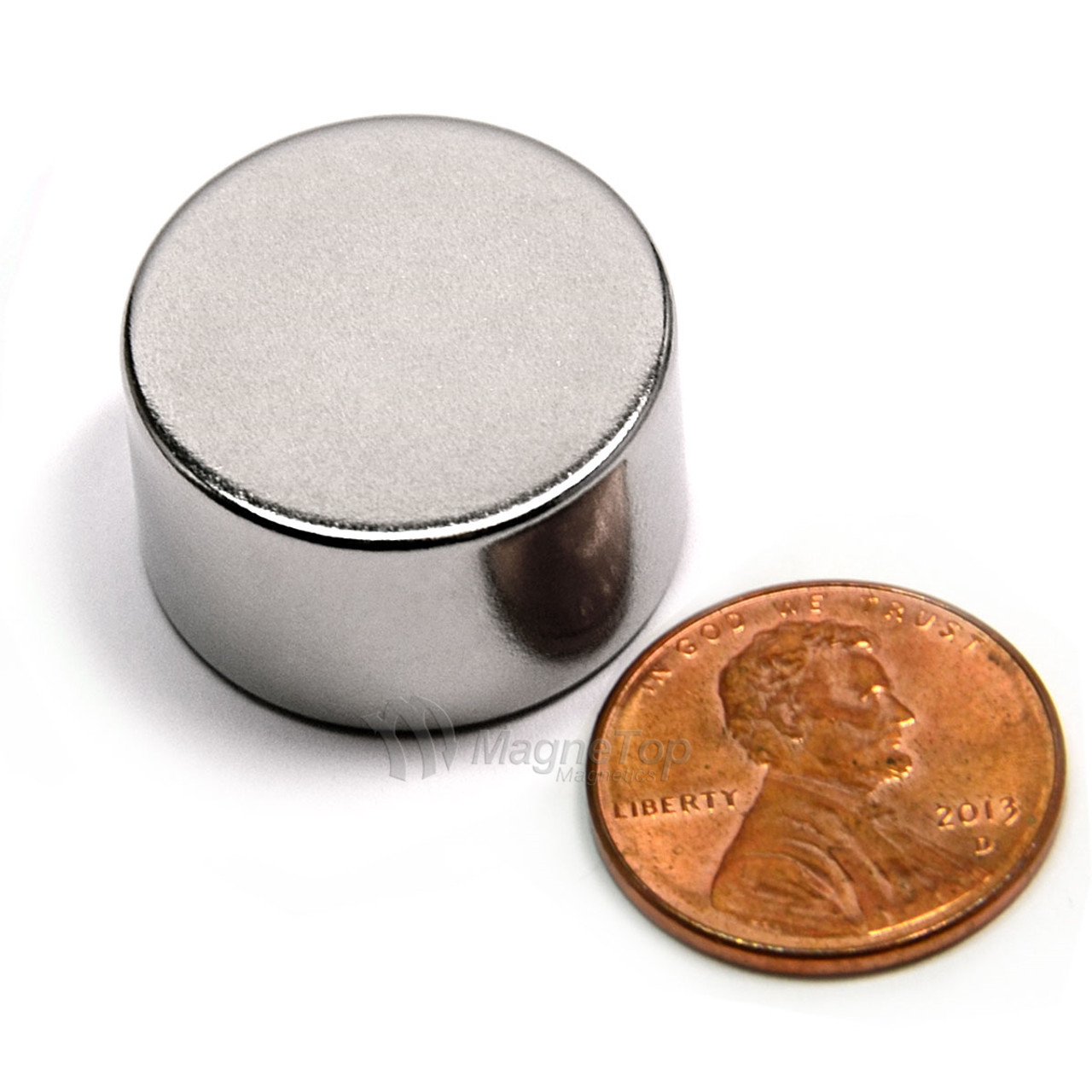

This product measures 25.4mm (1 inch) in diameter and 12.7mm (1/2 inch)in thickness and is made of a grade N52 neodymium, iron, and boron magnetic alloy blend. This magnetic blend is patent licensed and made under the ISO 9001 quality systems. They are plated in a nickel-copper-nickel coating for a shiny corrosion-resistant finish. The North and South poles are on the flat sides. The pull force of this magnet is 26.2kg. This is a great item for use in personal projects as well as for crafts and closures and can also be used to help keep objects secured or fastened to any ferrous surface.
- Material: Sintered NdFeB. Grade N52. (The product is also available in grade N35/N38/N42/N45/N50/N52, please contact us for special order)
- Gauss Rating: 13,200 Gauss.
- Pulling Force: 26.2kg
- Pole Orientation: Axially magnetized, the poles are on the flat ends.
- Coating: Ni+Cu+Ni 3 layer plated, the best coating available.
- Tolerance: The tolerances of all the dimensions are +/-0.05mm with coating.
PLEASE NOTE:
- All magnets may chip and shatter, but if used correctly can last a lifetime.
- Keep away from pacemakers.
- Not for children, parental supervision required.
- COMMERCIAL USE ONLY.
- If damaged please dispose of completely. Shards are still magnetized and if swallowed can inflict serious damage if magnets join inside the digestive tract.
Other Details
This product is covered by 2 year warranty on the magnetic strength under normal usage. Used in the environment which has high temperature and vibration will void this warranty. The product should not be used in the outdoor or high humid or salty environment except extra insulation measurement is taken.Product Videos
Custom Field
Grade N52
Pulling Force 26.2kg
Weight 48g
